Shop Tap / CartridgeVernet Thermostatic Cartridge Black TMV2 / CAWH08-05

Vernet Thermostatic Cartridge Black TMV2 / CAWH08-05

'- temperature range from 15°C (59°F) to 60°C (140°F), - factory preset at 38°C (100.4°F), - high resolution within the comfort zone of 34°C to 42°C ( 93.2°F to 107.6°F), - can be tailored to meet variety of application: 50°C (122°F) limitation, disinfection at 70°C (158°F). - shut the water flow upon cold water supply failure

In stock — ready to ship

Enquire Now

SKU: CAWH08-05

Description

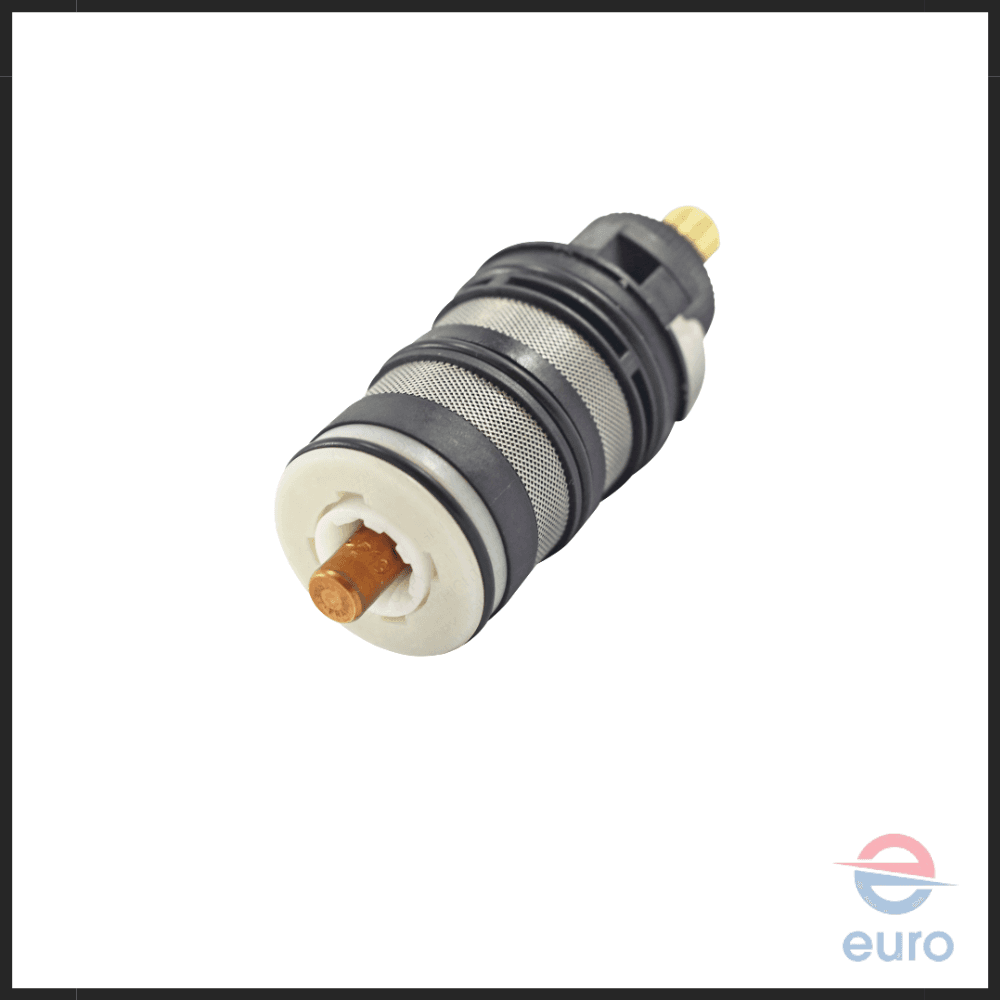

The thermostatic cartridge from Vernet, referred to as CAWH08-05, features a brass spline with 24 teeth and a plastic spline with 60 teeth. The temperature control stop is connected to the plastic spline. The CAWH08-05 cartridge is compatible with various brands and models, including but not limited to:

VADO VEL-149/RRKSQ/DIV-C/P
Vado Thermostatic cartridge retro-fit - VEL-RETROFIT/E2
V-001A-PLA

As a part of Vernet's CA77 range of thermostatic shower cartridges, the CAWH08-05 is designed to meet TMV2 standard requirements for low-pressure systems. Its exceptional sensitivity and performance have earned it approval for use in the UK's National Health Service (NHS) and other similar settings.
