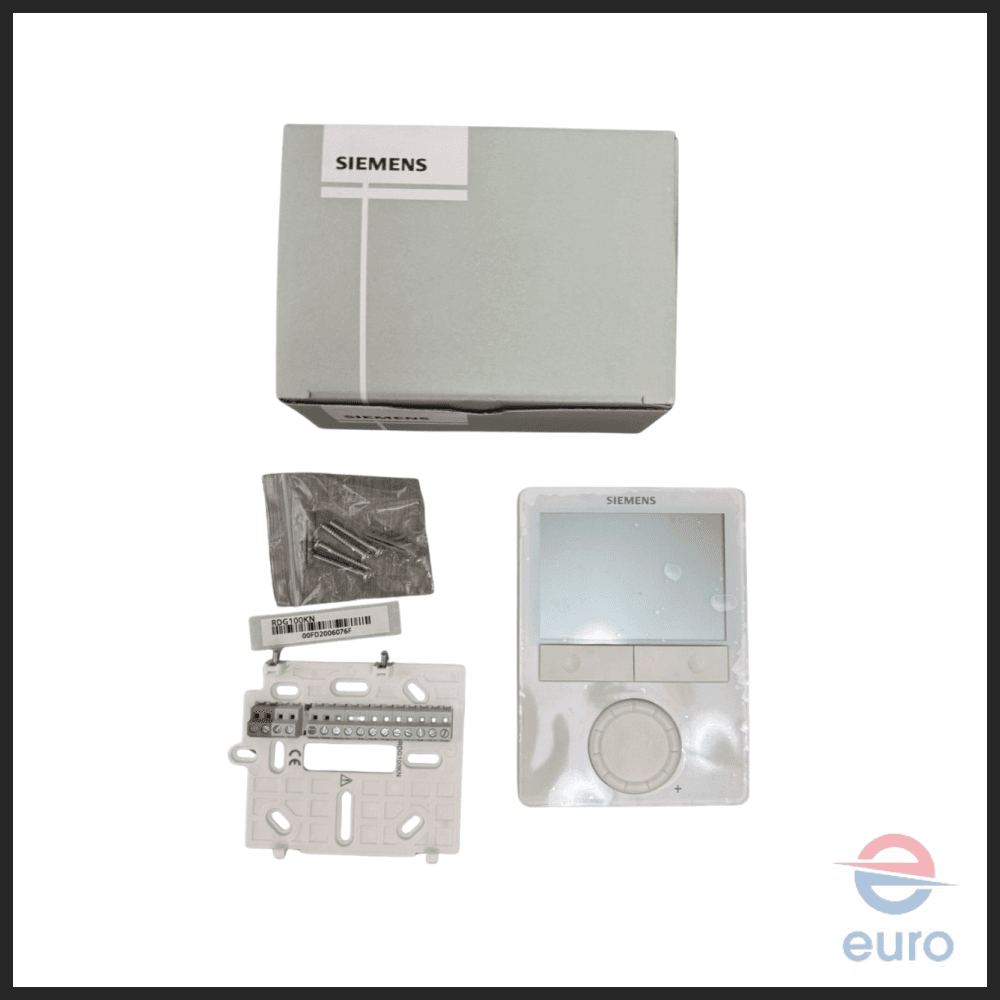

Siemens Room Thermostat RDG100KN
- Communication: KNX bus (S-mode and LTE mode)
- Outputs: On/Off, PWM, 3-position or DC 0-10 V control; 3-speed, 1-speed, or DC fan
- Inputs: 3 multifunctional for keycard contact, external sensor, etc.
- Modes: Comfort, Economy, Protection
- Voltage: AC 230 V
Description
Siemens Room thermostats with KNX communications RDG100KN automatic or manual fan speed control device. KNX bus communication (S-mode and LTE mode). Outputs for On/Off, PWM, 3-position or DC 0...10 V control. Outputs for 3-speed, 1-speed, or DC (DC 0...10 V) fan. 3 multifunctional inputs for keycard contact, external sensor, etc. Operating modes: Comfort, Economy and Protection. Operating Voltage: AC 230 V.
The applications selectable:
- 2-pipe system
- 2-pipe system with electrical heater
- 2-pipe system and radiator/floor heating
- 4-pipe system
- 4-pipe system with electrical heater
- 2-stage heating or cooling system
Specifications
| Brand | SIEMENS |
|---|---|
| SKU | RDG100KN |
| Category | KNX Room Thermostat |
