IFM

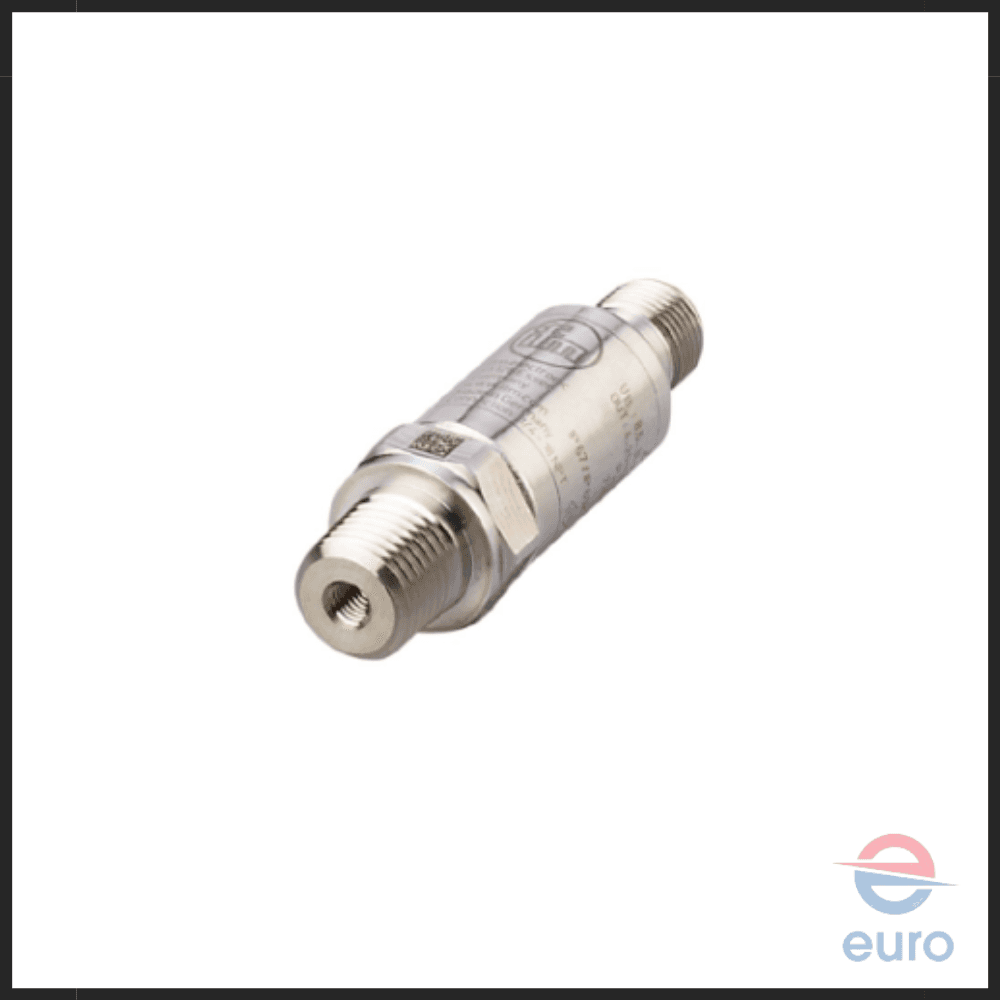

IFM Pressure Transmitter PT2415
Material: 1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Min. pressure cycles: 60 million; (at 1.2 times nominal pressure)
Operating voltage [V]: 8.5...36 DC
Description
The new pressure sensor is designed for reliable detection of system pressure in industrial applications. It is highly resistant to shock and vibration, and has excellent repeatability and low linearity error. The sensor has a lifespan of more than 60 million pressure cycles, and its compact and robust stainless steel housing makes it ideal for use in applications where space is restricted.
Specifications
| Brand | IFM |
|---|---|
| SKU | PT2415 |
| Category | Pressure Transmitter |
| Weight | 0.57 kg |
| Media | liquids and gases |
| Medium temperature [°C] | '-40...90 |
| Min. bursting pressure [psi] | 2900 |
| Reverse polarity protection | yes |
| Output signal | analog signal |
| Max. load [Ω] | (Ub – 8\,5 V) / 21\,5 mA; @8\,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω |
